Newton's 2nd law

RyL61FbBBVpMt

Druga zasada dynamiki Newtona

You will learn

to calculate the value of the acceleration of the body based on the second Newton’s law,
to calculate the value of acceleration based on the second Newton’s law using English vocabulary.

Exercise 1

RFy99llCwRmQt1

Source: GroMar, licencja: CC BY 3.0.

Nagranie dostępne na portalu epodreczniki.pl

Source: GroMar, licencja: CC BY 3.0.

nagranie abstraktu

a) Provide the definition and unit of accelerationaccelerationacceleration.
b) Provide the definition of uniformly accelerated rectilinear motionuniformly accelerated rectilinear motion.
c) What conditions must be met for the body to remain at rest?
d) What condition must be fulfilled by forces acting on the body so that it moves in uniform rectilinear motionuniform rectilinear motionuniform rectilinear motion?

a) Acceleration is a vector physical quantity equal to the change of body speed per unit of time. The unit of acceleration in the SI system is $[\frac{m}{s^{2}}]$ .
b) Uniformly accelerated motion is a motion that takes place in a straight line (the trajectory is a straight line) and in each unit of time the speed increases by the same value (the acceleration is constant).
c) The body remains at rest if the sum of forces acting on this body is equal to zero and the speed of the body relative to the selected reference frame is 0 $\frac{m}{s}$ .
d) The body moves in uniform rectilinear motion if any forces doesn't act or sum of all forces acting on this body is equal to zero. In this case we are talking about inertial reference frame that is, such in which the forces don't act on the body, they balance out.

Experiment

Experiment 1

Research problem

RnpIrv1KnNrpu1

Source: GroMar, licencja: CC BY 3.0.

Nagranie dostępne na portalu epodreczniki.pl

Source: GroMar, licencja: CC BY 3.0.

nagranie abstraktu

What motion will the body move under the influence of external, unbalanced forceunbalanced forceunbalanced force?

Hypothesis

R1alC8Qj4RXWq1

Source: GroMar, licencja: CC BY 3.0.

Nagranie dostępne na portalu epodreczniki.pl

Source: GroMar, licencja: CC BY 3.0.

nagranie abstraktu

The action of unbalanced forceunbalanced forceunbalanced force on the body causes a change in its speed, or giving it a specific accelerationaccelerationacceleration. This acceleration can be constant, and thus body motion - uniformly accelerated.

You will need

RUuusWtGDan2z1

Source: GroMar, licencja: CC BY 3.0.

Nagranie dostępne na portalu epodreczniki.pl

Source: GroMar, licencja: CC BY 3.0.

nagranie abstraktu

1. a cart with a weight of approx. 200 g,
2. tape measure,
3. stopwatch,
4. a table with a length of approx. 2 m,
5. paper tape,
6. marker for marking,
7. pulley,
8. weight of 5 g - 10 g,
9. durable thread.

Instruction

R1ObhvkHkZeED1

Source: GroMar, licencja: CC BY 3.0.

Nagranie dostępne na portalu epodreczniki.pl

Source: GroMar, licencja: CC BY 3.0.

nagranie abstraktu

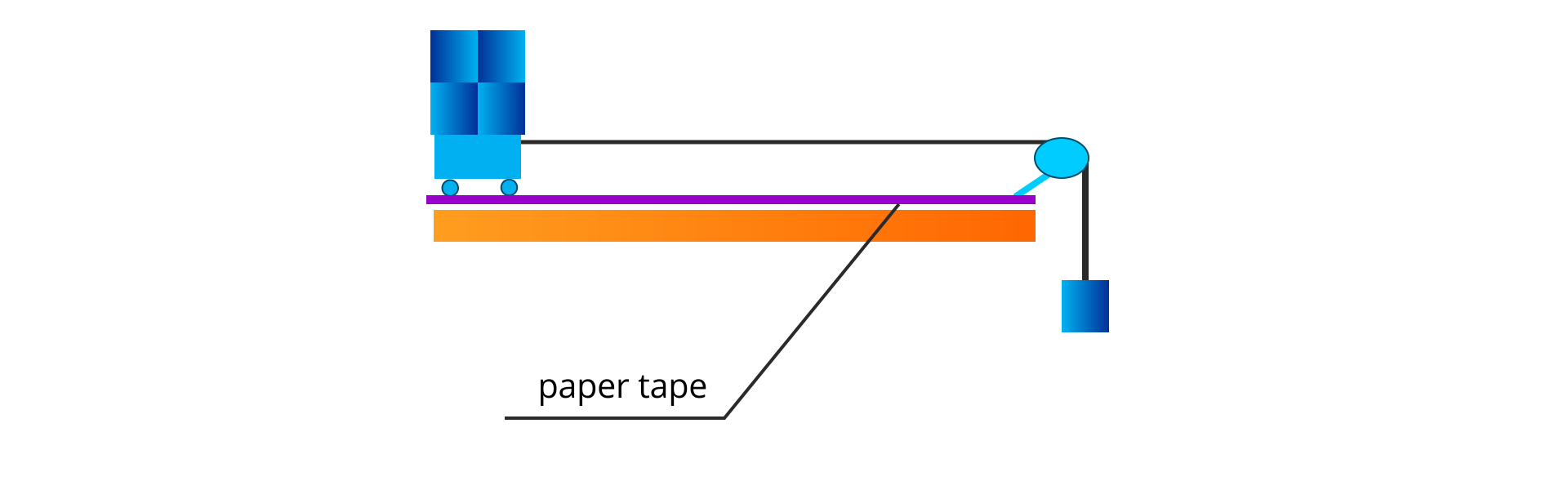

1. Build the system according to the drawing below.
2. Attach the paper tape to the table.
3. Place the cart at the beginning of the table.

R1YDGrAhkZP2K1

Ilustracja przedstawia długi prostokąt, na nim linia opisana paper tape. Na lewym końcu narysowany jest wózek (prostokąt z dwoma kołami) z 4 kwadratami takiej samej wielkości na nim. Od niego linia pozioma do kółka narysowanego na prawym końcu prostokąta. Od kółka linia pionowa w dół, na jej końcu kwadrat wielkości takiej samej, jak kwadraty na wózku. — Source: GroMar, licencja: CC BY 3.0.

4. Turn on the stopwatch, release the weight.
5. At equal time intervals, mark the distance travelled.
6. Measure the length of the marked segments on the tape.
7. Record the results in the table.


$F [N]$	$Δ t [s]$	$s [m]$	$v_{a v} = \frac{s}{Δ t} [\frac{m}{s}]$	$Δ v [\frac{m}{s}]$	$a = \frac{Δ v}{Δ t} [\frac{m}{s^{2}}]$

Summary

RogSz4G1RrEKl1

Source: GroMar, licencja: CC BY 3.0.

Nagranie dostępne na portalu epodreczniki.pl

Source: GroMar, licencja: CC BY 3.0.

nagranie abstraktu

The average speed increases.

The ratio of the change of speed of a moving body to the time when this change occurred within the limits of measurement errors is constant.

It follows that the action on the body of a constant, unbalanced external forceexternal forceexternal force causes the body to move with constant accelerationaccelerationacceleration, i.e. it moves in a uniformly accelerated motion.

Task 1

R1F2yU6JASjrl1

Source: GroMar, licencja: CC BY 3.0.

Nagranie dostępne na portalu epodreczniki.pl

Source: GroMar, licencja: CC BY 3.0.

nagranie abstraktu

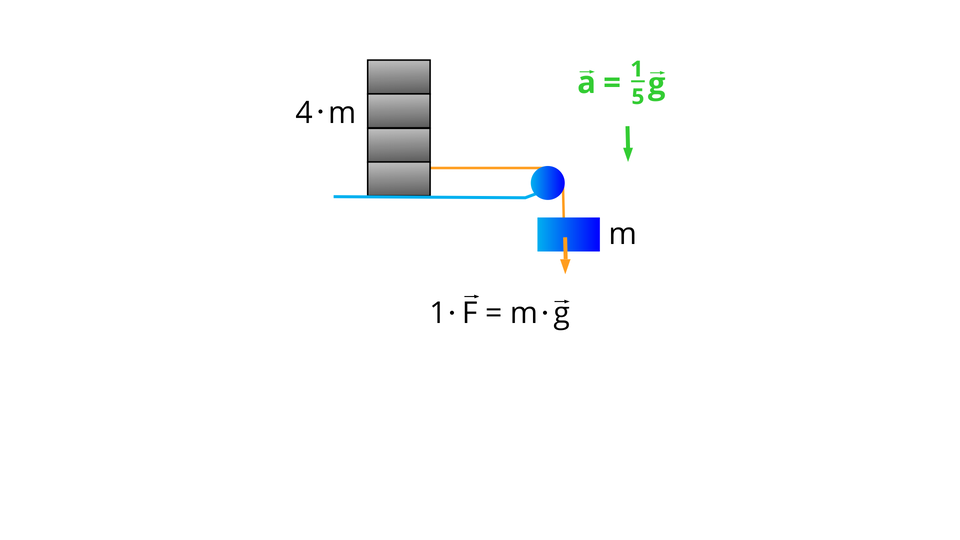

Provide conclusions that you could draw after seeing the drawings below.

R18QZOf0ReN8d1

Conclusions

R1VFOMi03gIKZ1

Source: GroMar, licencja: CC BY 3.0.

Nagranie dostępne na portalu epodreczniki.pl

Source: GroMar, licencja: CC BY 3.0.

nagranie abstraktu

1. The mass of the entire system has not changed.
2. Under the influence of the applied force, the body system moved in a uniformly accelerated motion.
3. If the force increases, the acceleration of the system increases. This means that the acceleration value is directly proportional to the value of the acting force.

The second Newton's law

RKGtx58VN5I0s1

Source: GroMar, licencja: CC BY 3.0.

Nagranie dostępne na portalu epodreczniki.pl

Source: GroMar, licencja: CC BY 3.0.

nagranie abstraktu

If a constant unbalanced forceunbalanced forceunbalanced force acts on the body, the body moves in a uniformly variable motion with an acceleration directly proportional to the applied force and dependent on the body mass. If body weight will be greater the acceleration of the body will be lesser. This means that the mass is inversely proportional to the acting unbalanced force.

We write the second Newton's law as:

\vec{a} = \frac{\vec{F}}{m}

\vec{F} = m \cdot \vec{a}

where:

a [ $\frac{m}{s^{2}}$ ] - accelerationaccelerationacceleration,
F [N] - force,
m [kg] - body mass.

REEs7relIHkyf

Source: GroMar, licencja: CC BY 3.0.

Nagranie dostępne na portalu epodreczniki.pl

Source: GroMar, licencja: CC BY 3.0.

nagranie abstraktu

From the second Newton’s lawsecond Newton’s law second Newton’s law:

If different forces act on a body of constant mass, the higher the magnitude of the resultant forceresultant forceresultant force, the larger the acceleration of the body.
If the same force acts successively on bodies with different masses, the smaller the mass of the body, the larger the acceleration of the body.
If the same forces is applied on bodies with different masses, smaller acceleration is obtained by a body with a larger mass.

The second Newton's law allows us to define a unit of force.

1 N (newton) - 1 newton is the magnitude of the force that causes accelerationaccelerationacceleration of 1 $\frac{m}{s^{2}}$ of a body with a mass of 1 kg.

Exercise 2

RcV5ZbJH8jAjm

A body with a constant mass under the influence of a constant unbalanced force can move in:

uniform rectilinear motion
uniformly accelerated motion
uniformly decelerated motion
none of these motions

Exercise 3

REIyVGMv6GKhi

Source: GroMar, licencja: CC BY 3.0.

Nagranie dostępne na portalu epodreczniki.pl

Source: GroMar, licencja: CC BY 3.0.

nagranie abstraktu

A resultant force giving the body an accelerationaccelerationacceleration of 4 $\frac{m}{s^{2}}$ acts on the body with a mass of 10 kg. Calculate the magnitude of the resultant force.

Analysis

Given:

$m = 10 k g$

$a = 4 \frac{m}{s^{2}}$

Unknown:

$F_{w} = ?$

Solution:

$a = \frac{F}{m}$

$F = m \cdot a [k g \cdot \frac{m}{s^{2}} = 1 N]$

$F = 10 k g \cdot 4 \frac{m}{s^{2}}$

$F = 40 N$

Answer:

The magnitude of the resultant forceresultant forceresultant force is 40 N.

Exercise 4

RvhFeFiU70Omz1

Source: GroMar, licencja: CC BY 3.0.

Nagranie dostępne na portalu epodreczniki.pl

Source: GroMar, licencja: CC BY 3.0.

nagranie abstraktu

The friction force acting on the car is 400 N, while the applied force is 1000 N. The mass of the car is 1,5 t. Calculate the acceleration of the car under the action of a constant force.

Analysis

Given:

$m = 1, 5 t = 1500 k g$

$F_{o} = 400 N$

$F_{c} = 1000 N$

Unknown:

$F_{w} = ?$

$a = ?$

Solution:

$F_{w} = F_{c} - F_{o}$

$F_{w} = 1000 N - 400 N$

$F_{w} = 600 N$

$a = \frac{F_{w}}{m}$

$a = \frac{600 N}{1500 k g}$

$a = 0, 4 \frac{N}{k g}$

$a = 0, 4 \frac{k g \cdot \frac{m}{s^{2}}}{k g}$

Answer:

The acceleration is 0,4 $\frac{m}{s^{2}}$ .

Summary

R1OKbWibiEjtD

Source: GroMar, licencja: CC BY 3.0.

Nagranie dostępne na portalu epodreczniki.pl

Source: GroMar, licencja: CC BY 3.0.

nagranie abstraktu

In the 17th century, an outstanding physicist and mathematician Sir Isaac Newton formulated three laws of dynamics. A special role in the development of physics was played by the second one: „If a constant unbalanced forceunbalanced forceunbalanced force acts on the body, the body moves in a uniformly variable motion with an acceleration directly proportional to the applied force and dependent (inversely proportional) on the body mass”.
The second Newton’s law shows that if different forces act on a body with a constant mass, the higher the magnitude of the resultant forceresultant forceresultant force, the larger the acceleration of the body. In turn, if the same force acts successively on bodies with different masses, the smaller the mass of the body, the larger the acceleration of the body.
The second Newton’s lawsecond Newton’s law second Newton’s law is written using the formulas:
$\vec{a} = \frac{\vec{F}}{m}$
$\vec{F} = m \cdot \vec{a}$
where:
a [ $\frac{m}{s^{2}}$ ] - acceleration,
F [N] - force,
m [kg] - body mass.
The second Newton’s law allows us to define a unit of force - 1 N (newton).
1 newton is the magnitude of the force that causes accelerationaccelerationacceleration of 1 $\frac{m}{s^{2}}$ of a body with a mass of 1 kg.

Exercises

R1WKnv3aQyVeR

Exercise 5

The car on the horizontal road section moves in a uniformly accelerated motion. Which sentences are true?

The resultant of all forces acting on the car is 0 N.
The resultant of all forces acting on a car is constant and different from 0 N.
Acceleration of the car changes over time.
Acceleration of the car is directly proportional to the resultant force.
The distance travelled is directly proportional to the applied force.

zadanie

Source: GroMar, licencja: CC BY 3.0.

Exercise 6

The force of 8 N began to act in the direction of its movement, on a body with a mass of 2 kg moving at a speed of 4 $\frac{m}{s}$ . How much time is needed to increase the body speed three times?

Analysis

Given:

$m = 2 k g$

$v = 4 \frac{m}{s}$

$F = 8 N$

$v_{2} = 3 v$

Unknown:

$Δ t = ?$

$a = \frac{F}{m}$

$a = \frac{8 N}{2 k g} = 4 \frac{m}{s^{2}}$

$Δ v = v_{2} - v = 3 v - v = 2 v$

$Δ v = 2 \cdot 4 \frac{m}{s} = 8 \frac{m}{s}$

$a = \frac{Δ v}{Δ t}$

$Δ t = \frac{Δ v}{a}$

$Δ t = \frac{8 \frac{m}{s}}{4 \frac{m}{s^{2}}} = 2 s$

Answer:

The body speed will increase three times after 2 seconds.

Exercise 7

Write in English, in which case the bus passengers will feel less shakes while driving, when it is full or empty. Justify the answer.

RDF57V6atJx2r

Exercise 8

Indicate which pairs of expressions or words are translated correctly.

przyspieszenie - acceleration
układ odniesienia - reference frame
wzór - formula
siła niezrównoważona - unbalanced force
siła wypadkowa - extenal force
siła zewnętrzna - resultant force

zadanie

Source: GroMar, licencja: CC BY 3.0.

R1TBFj0VIKUbL1

Match Polish terms with their English equivalents.

siła wypadkowa
second Newton’s law
resultant force
druga zasada dynamiki Newtona
unbalanced force
siła zewnętrzna
siła niezrównoważona
acceleration
extenal force
przyspieszenie

Source: Zespół autorski Politechniki Łódzkiej, licencja: CC BY 3.0.

Glossary

acceleration

przyspieszenie

R19nri1dRLAVQ1

Source: GroMar, licencja: CC BY 3.0.

Nagranie dostępne na portalu epodreczniki.pl

Source: GroMar, licencja: CC BY 3.0.

wymowa w języku angielskim: acceleration

external force

siła zewnętrzna

R58wRAWhHtsOT1

Source: GroMar, licencja: CC BY 3.0.

Nagranie dostępne na portalu epodreczniki.pl

Source: GroMar, licencja: CC BY 3.0.

wymowa w języku angielskim: external force

formula

wzór

R1LumIds6yQmN1

Source: GroMar, licencja: CC BY 3.0.

Nagranie dostępne na portalu epodreczniki.pl

Source: GroMar, licencja: CC BY 3.0.

wymowa w języku angielskim: formula

reference frame

układ odniesienia

R1Fmi9v45pV0K1

Source: GroMar, licencja: CC BY 3.0.

Nagranie dostępne na portalu epodreczniki.pl

Source: GroMar, licencja: CC BY 3.0.

wymowa w języku angielskim: reference frame

resultant force

siła wypadkowa

Rg2LKFSoplfDk1

Source: GroMar, licencja: CC BY 3.0.

Nagranie dostępne na portalu epodreczniki.pl

Source: GroMar, licencja: CC BY 3.0.

wymowa w języku angielskim: resultant force

second Newton’s law

druga zasada dynamiki Newtona

R1U0iQRUPzpst1

Source: GroMar, licencja: CC BY 3.0.

Nagranie dostępne na portalu epodreczniki.pl

Source: GroMar, licencja: CC BY 3.0.

wymowa w języku angielskim: second Newton’s law

unbalanced force

siła niezrównoważona

R1S8kj61DIXiG1

Source: GroMar, licencja: CC BY 3.0.

Nagranie dostępne na portalu epodreczniki.pl

Source: GroMar, licencja: CC BY 3.0.

wymowa w języku angielskim: unbalanced force

uniform rectilinear motion

ruch jednostajny prostoliniowy

RxSKbv69gmj621

Source: GroMar, licencja: CC BY 3.0.

Nagranie dostępne na portalu epodreczniki.pl

Source: GroMar, licencja: CC BY 3.0.

wymowa w języku angielskim: uniform rectilinear motion

uniformly accelerated rectilinear motion

ruch jednostajnie przyspieszony

RwUKNSVFgHnaK1

Source: GroMar, licencja: CC BY 3.0.

Nagranie dostępne na portalu epodreczniki.pl

Source: GroMar, licencja: CC BY 3.0.

wymowa w języku angielskim: uniformly accelerated rectilinear motion
